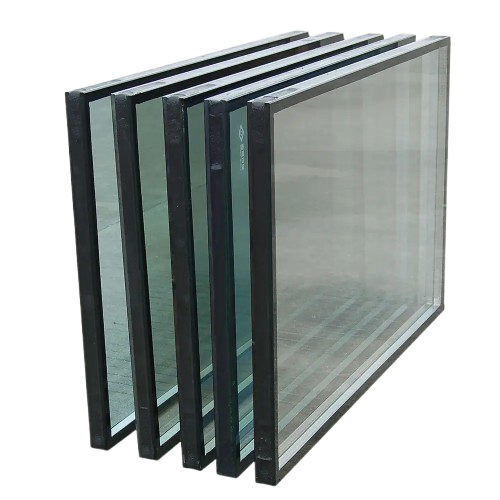

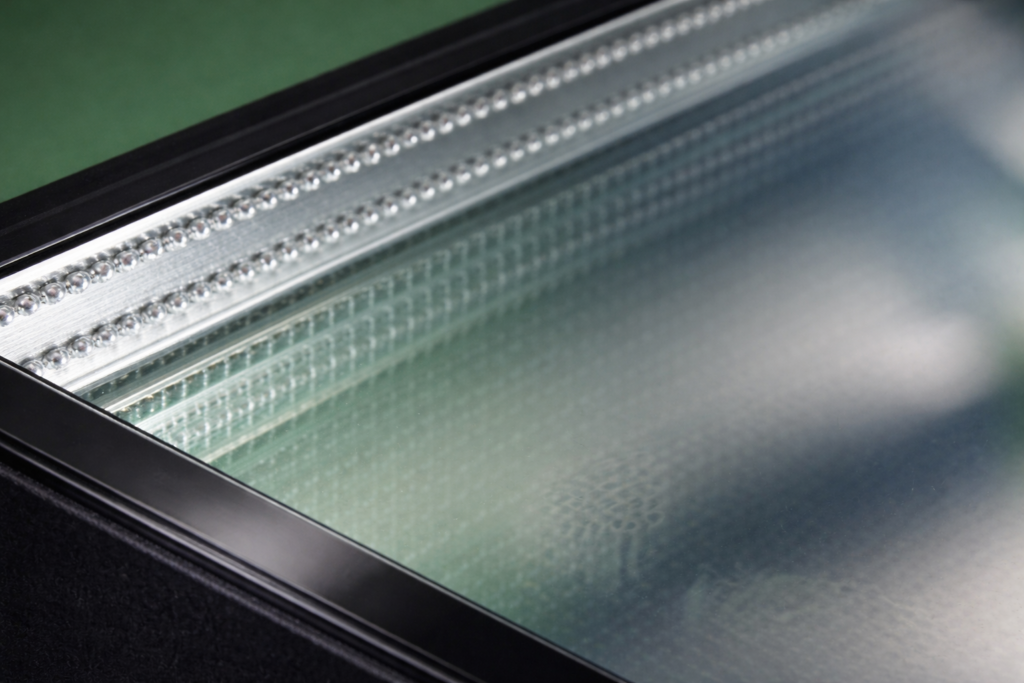

Insulating Glass Units (IGUs) are made of two or more glass panels separated by a desiccant-filled aluminum spacer and sealed at the edges with high-strength sealants. This multi-layered construction improves thermal performance, helps control condensation, and enhances indoor comfort.

Key Features

• Excellent thermal insulation for improved energy efficiency

• Helps reduce heat transfer compared to single glazing

• Provides sound reduction for quieter indoor spaces

• Minimizes condensation by using dry air within the sealed cavity

• Can be combined with coated, laminated, or ceramic frit glass for enhanced performance and appearance

• Improves indoor comfort by reducing cold radiation and discomfort near glazed areas

Specifications

• Maximum size: 3000 mm × 6000 mm

• Spacer width: 6 mm – 24 mm

• Glass thickness: 3 mm – 15 mm

• IGU thickness: 12 mm – 50 mm
